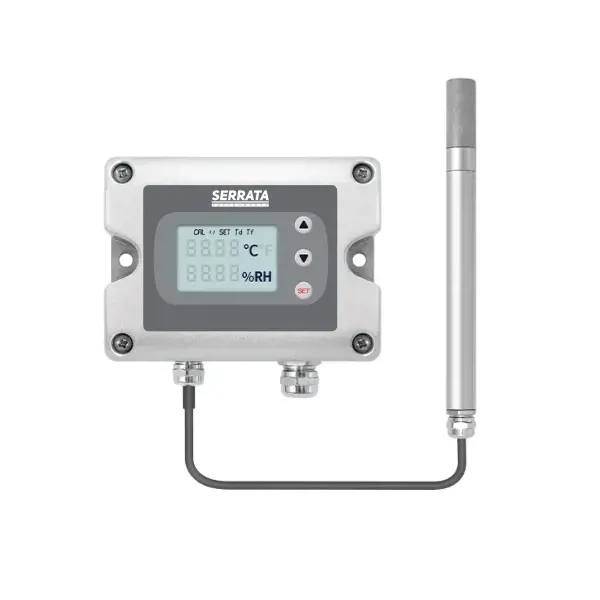

THA-70 High Temperature Humidity Transmitter
Main Features
- Operation up to 180 ºC
- Ideal for Drying Process
- Local Display
- Stainless Steel Probe
- 4-20 mA and Rs485 Modbus options
- Robust Design
| THA-70-A | THA-70-M | |
|---|---|---|
| Humidity Measuring Range | 0-100 %RH (typical) (10-95 %RH non-condensing) | |
| Humidity Accuracy | +- 2 %RH (< 90 %RH @ 20ºC) | |
| Temperature Range (as probe working) | -40....+180 ºC | |
| Temperature Accuracy | +-0,3 ºC (@ 20ºC) | |
| Response Time (Humidity) | < 12 second | |
| Probe Material and Filter Cap | 304 SS - Sintered metal | |
| Probe Dimension and cable | 200 mm probe lenght and 15 mm probe diameter, 2 meter integrated cable | |
| Transmitter Ouput Signal | 2 x 4-20 mA | Rs485 Modbus |
| Alarm Outputs |
2 Relays one is for Temperature and other is for Relative Humidity |
|
| Power Supply | 15...30 Vdc | |
| Transmitter Electronic | Aluminium case (120x88x51mm), -20...+50 ºC working temperature, 2 row LCD | |
Content is preparing
| Order Code | Details |
|---|---|
| THA-70-A | High Temperature Humidity Transmitter with Analog Output version |
| THA-70-M | High Temperature Humidity Transmitter with Rs485 Modbus version |
